Dry Chemical Fire Suppression Systems

Dry Chemical Fire Suppression Systems are types of fire protection systems that use of dry chemical powder to extinguish Fire. DCP Skid System is designed and constructed for one-person operation and pre-pressurized ready for immediate discharge. Dry Chemical Skid Units incorporated a large capacity extinguisher cylinder and nitrogen back-up supply ready for instant actuation and maintain constant pressure during the discharge cycle.

DCP Fire Suppression System Use?

Sodium bicarbonate and mono-ammonium phosphate are two of the most common powders used in dry chemical fire extinguishing systems. Sodium bicarbonate is used in Class B and Class C fires. Monoammonium phosphate is used for ABC fires. We can provide potassium bicarbonate as well as Monnex for class B fires. Dry Chemical System provide large capacity fire fighting capabilities for the extinguishing agents for class B and C hazards.

We can design and install the perfect solution for your facility. Get a quote for the best minimum price. For more information about dry chemical suppression system, Please feel free to call us on (+91) 98672 70176.

Typical applications include:
  • LNG transport vessels and facilities.
  • Cargo areas and loading stations.
  • Oil and gas production facilities.
  • Aircraft rescue and hanger facilities.
  • Fuel storage locations and Marine port operations.
  • Floating production storage units.
  • Chemical, textile and plastics manufacturing.
  • Paint and solvent areas and transformers.

Features

  • Easy to design.
  • Flexible installation parameters.
  • safe and reliable fire protection.
  • Agent Capacity of 100 to 150 Kg available.

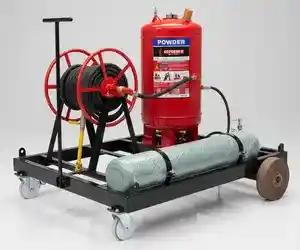

DCP Skid Specifications

Parameters Specifications
Dry Chemical Capacity: 100 Kg 150 Kg
Discharge Range (MTR.) 18 TO 24 18 TO 24
Working Pressure 15 Bar 15 Bar
Test Pressure 35 Bar 35 Bar
Burst Pressure: 50 Bar 50 Bar
Operating Temp (℃) -30 ℃ to +55 ℃ -30 ℃ to +55 ℃
Hose Length each reel (MTR) 30. 30
Number of Hose reels 1 1
Hose Dia. (IN) 1 1
Maxflow rate (Kg./SEC.) per reel 6.35029 6.35029
Nitrogen cylinder 1 1
Pressure relief Yes Yes
Fill opening 4” Vented cap with O Ring 4” Vented cap with O Ring
Vessel Material Carbon steel Carbon steel
Vessel thickness (MM) 6 6
System hoses Braided PVC Braided PVC
Fittings Brass Brass
Paint Finish PO Red PO Red
