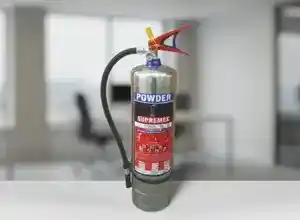

ABC Powder Fire Extinguishers

ABC Powder Fire Extinguishers are made with supreme quality materials to robustly counter ABC classes of fire. These fire extinguishers are also effective against electric fires and user-friendly design.

ABC or Multi-purpose Fire extinguisher contains a specialized siliconized mono ammonium phosphate dry chemical powder. It chemically insulates class A fires by melting at approximately 350˚F and coats surface to which it is applied. Dry Powder Extinguishers smothers and breaks the chain reaction of Class B fires and will not conduct electricity back to the operator.


Features of Dry Powder
  • Deep Drawn Steel Cylinders.
  • Durable high glossy polyester powder coating.
  • Brass forging valve chrome plated heavy duty.
  • Siliconized MAP Based powder BIS/IRS approved /UL listed.
  • MAP 50% % 90% variants available.
  • Helium leak tested * (only in stored pressure fire extinguisher, on prior request).
  • Stainless steel body options available with BIS marking.
  • BIS /IRS (cartridge type only) approved & CE certified.

ABC Type Fire Extinguisher Specification

Specifications Stored Pressure Cartridge Operated
Capacity (Kg) 1 2 4 6 9 6 9
Diameter (mm) 86.5 108 130 150 175 150 175
Height (mm) 340 395 485 550 605 495 630
Empty Weight (kg) 1.3 1.8 2.8 3.5 4.7 495 630
Filled Weight (kg) 2.3 3.8 6.8 9.5 13.7 5.1 7.1
Operating Temperature -20 ℃ to +55 ℃ -20 ℃ to +55 ℃ -20 ℃ to +55 ℃ -20 ℃ to +55 ℃ -20 ℃ to +55 ℃ -30 ℃ to +55 ℃ -30 ℃ to +55 ℃
Working pressure 15 bar 15 bar 15 bar 15 bar 15 bar 15 bar 15 bar
Maximum Service Pressure 1.8 MPa 1.8 MPa 1.8 MPa 1.8 MPa 1.8 MPa 1.8 MPa 1.8 MPa
Test Pressure 35 bar 35 bar 35 bar 35 bar 35 bar 35 bar 35 bar
Average Discharge Time 8 11 15 20 25 20 25
Discharge Range <2 <2 <4 <4 <4 <4 <4
Fire Rating 1A,8B 1A,13B 2A, 21B 3A,21B 3A,55B 3A,34B 4A,55B
